Overview

Advantage CSP introduces a uniquely wrapped RESTful Web Services API, which allows you to create and consume content and data from Advantage CSP.

The main benefits of using these services are the following:

Support for multiple RESTful API services
User-friendly UI for configuration of the services
Control over the set of content types that are exposed
Option to allow anonymous access per profile or type
Easy access to related data
Auto-generated API reference
Support for saved queries and calculated fields
Ability to specify select returned fields, plus master ID and version

The Advantage API allows developers to easily setup and access any Defined Business Object, quickly and securely. Granular control can be configured from the Advantage CSP admin console.

Client-side consumers can easily access the data using standard web ajax calls or may use the Advantage Wrapper that makes retrieving data simple.

Using Advantage CSP’s UI, you can include but not limited in your web service the following types of content:

News items
Blogs and Blog posts
Events and Calendars
Images and Image libraries
Videos and Video libraries
Documents and Document libraries
Lists and List items
Comments
Dynamic content
Shared content blocks
Flat and Hierarchical taxonomies
Folders
Pages
Detailed API reference

Advantage CSP Server API Setup

Configuring any object for API Access can easily be done by creating an API entry in the configuration section.

You may configure the same object under different API names in order to provide different clients with different levels of authentication or workflow.

You may configure the same object under different API names in order to provide different clients with different levels of authentication or workflow

Type the following URL (mywebsite.com/admin

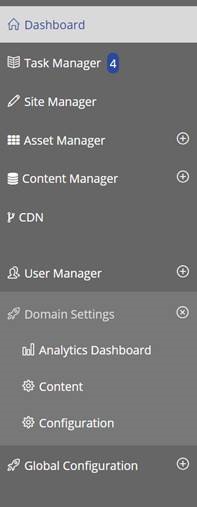

2. Once logged in, select configuration from the main admin navigation pane.

3. The node will expand to reveal three options; site, social and system.

4. Select System, the main admin workspace will now show a grid, as per below

5. Select API Settings, by clicking the pencil.

6. Configuring any object for API Access by selecting “Add” to create a new entry.

7. Enter all the required information as indicated below.

9. Press update to commit and save to set active

Advantage Server API Security

In order to access BusinessObjects that have been defined as “Secure” in the configuration, an “AdvantageSecureContentControllerHandler” must be defined and added to the AdvantageCSP.API.WebApiConfig”.

AdvantageSecureContentControllerHandler

namespace AdvantageCSP.WebAPI

{

//Sample class to show how you can authenticate requests.

/// <summary>

/// This is a code sample on how to implement the AdvantageSecureController. This example looks at a response header.

/// </summary>

public class SecureContentControllerHandler : AdvantageSecureContentControllerHandler

{

private static string myKey = "d32b2c8c-dc57-4978-bf98-7c82db7c027c";

private class AuthResponse

{

public string UserName { get; set; }

public string Password { get; set; }

public DateTime TimeStamp { get; set; }

}

public override AdvantageAuthResponse AuthenticateRequest(HttpRequestMessage request)

{

var credentials = ParseAuthorizationHeader(request);

//check for credentials and if they expired?

if (credentials != null)//&& credentials.TimeStamp > DateTime.Now.AddDays(-1)

return new AdvantageAuthResponse(){Success =true};

else

return new AdvantageAuthResponse() { Success = false };

}

private AuthResponse ParseAuthorizationHeader(HttpRequestMessage request)

{

try

{

AuthResponse result = new AuthResponse();

string authHeader = null;

var auth = request.Headers.Authorization;

if (auth != null && auth.Scheme == "Basic") authHeader = auth.Parameter;

if (string.IsNullOrEmpty(authHeader)) return null;

authHeader = Encryption.Decrypt(Encoding.Default.GetString(Convert.FromBase64String(authHeader)), myKey);

var tokens = authHeader.Split(':');

if (tokens.Length < 3) return null;

result.UserName = tokens[0];

result.Password = tokens[1];

result.TimeStamp = DateTimeOffset.FromUnixTimeSeconds(Convert.ToInt64(tokens[2])).DateTime;

return result;

}

catch{ return null; }

//Sample of some authorization header for use in secure api.

public static string GenerateAuthHeader()

{

string username = "SomeName";

string password = "SomePassword";

string datetime = DateTimeOffset.UtcNow.ToUnixTimeSeconds().ToString();

byte[] data = ASCIIEncoding.ASCII.GetBytes(Encryption.Encrypt(string.Format("{0}:{1}:{2}", username, password, datetime), myKey));

return @"{ ""Authorization"": ""Basic "+ System.Convert.ToBase64String(data).ToString() + @"""}";

}

Global.asax

void Application_Start(object sender, EventArgs e)

{

AdvantageCSP.API.WebApiConfig.Register(GlobalConfiguration.Configuration, new AdvantageCSP.WebAPI.SecureContentControllerHandler());

}

</script>

Advantage Client API

This method will return a list of objects that have been defined as API accessible.

Usage:

Implement the routing (and optional security handler in Global.asax)
Using secure methods requires you to return a successfull 'AdvantageAuthResponse' from the method "AuthenticateRequest" implemented in the handler. Optional indexing and filtering parameters can be sent via the 'data' parameter.
Index (optional index defined on the object)
- {"Key":"indexname","DataType":"index data type","Comparison":"comparitor","Value":"value to compare"}
Filter (optional array of 'where' criteria)
- [{"Key":"field name","DataType":"filter data type","Comparison":"comparitor","Value":"value to compare"}]
SorlList (optional array of sorting criteria)
- [{"field name","direction"}]
FieldList (optional array of fields to populate)
- [{"field name"}]
MaxRecords (optional maximum records to return '0' is all)
SkipRecords (optional records to skip '0' is none)

Authentication

Authentication is used via the implementation of the AdvantageSecureContentControllerHandle This is a messaging handler that needs to be registered when you register the routing for the API in the Global.asax.

Error Codes

401 secure methods must implement the 'AdvantageSecureContentControllerHandler' and return successful security request.
500 unable to access the API

POST Get All Objects Example

#Basic list request sample usage of object "article" for language "en" using secure method

//yourserver.com/advantageapi/secure/content/get/article/en

Headers

Content-Type

application/json

Accept

application/json

Authorization

Basic enRBUVNiVlVHdVZwTVNRbGZ1SXUwNWl5dE1zQWZac2JOK3pDbnBUUFpVckFmcWd6MHN5YnZiQlRNQjJQbVFXVEh0eTdndmZ2VGk1QzdsKzltaGc2T2paeUk3eEtCRy9iSEhYVnZVSTlmMXM9

Sample authentication header (encrypted with a username, password, datetime created)

Body

raw (application/json)

{ "Index":{"Key":"Author","DataType":"string","Comparison":"equals","Value":"The Enginess Team"}, "FieldList": ["Author", "ArticleDate", "ArticleImage", "Title"], "SortList": [{"FieldName":"ArticleDate","Direction":"asc"}, {"FieldName":"Title", "Direction":"desc"}], "Filter":[{"Key":"Title","DataType":"string","Comparison":"like","Value":"https"}]}

POST Get Filtered Objects Example

//yourserver.com/advantageapi/secure/content/get/article/en

#Advanced list request Sample usage of object "article" for language "en"

Headers

Content-Type

application/json

Accept

application/json

Authorization

Basic enRBUVNiVlVHdVZwTVNRbGZ1SXUwNWl5dE1zQWZac2JOK3pDbnBUUFpVckFmcWd6MHN5YnZiQlRNQjJQbVFXVEh0eTdndmZ2VGk1QzdsKzltaGc2T2paeUk3eEtCRy9iSEhYVnZVSTlmMXM9

Sample authentication header (encrypted with a username, password, datetime created)

Body

raw (application/json)

Advantage Client API Wrapper

Advantage CSP offers a client wrapper that you can add to your client pages to simplify retrieving data.

Reference the API wrapper JS file from the advantage server

The AdvantageAPI.js file objects to assist in defining method calls.

// Defined objects:

advDataType = Object.freeze({ String: 'string', Date: 'date', Boolean: 'boolean', Decimal: 'decimal', Integer: 'integer', UniqueIdentifier: 'uniqueidentifier' });

advCompare = Object.freeze({ Equals: 'equals', NotEquals: 'notequals', Like: 'like', NotLike: 'notlike', GreaterThan: 'greaterthan', GreaterOrEquals: 'greaterorequals', LessThan: 'lessthan', LessOrEquals: 'lessorequals', All: 'all' });

Sample implementation

function Sample() {

// Create the request context API Aricle, language english

var tmp = new AdvContentRequest("Article","en");

// specify secure API access

tmp.Authenticate = true;

// specify the security header (custom)

tmp.Header = 'encrypted security context';

// OPTIONAL: specify an index

// Parameters: Field Name, Value, Data Type, Compare Method

tmp.set_Index("Author", 'Ernest Hemingway', advDataType.String, advCompare.Like);

// OPTIONAL: specify a sort order

tmp.AddSort(advDirection.Asc,’ 'Title' );

// OPTIONAL: specify field list (reduces payload from server)

tmp.AddField("Title");

tmp.AddField("ArticleDate");

tmp.AddField("Author");

tmp.AddField("ArticleImage");

// call function to return data.

// Parameters: AdvContentRequest, Success Method, Failure Method

advGetContent(tmp, showResult, showResult); //Get the data.

}

function showResult(resp) {

// Show the pretty result.

var pretty = JSON.stringify(resp, undefined, 2);

alert( pretty);

}

</script>

AdvantageSecureContentControllerHandler

Global.asax

Headers

Body

raw (application/json)

Headers

Body

raw (application/json)

Sample implementation
